Outdoor Durable Natural Silver Aluminum Spigot Truss 287mm For Outdoor Event
Description
1. Model No.: SQS287
2. Section size: 287*287 square
3. Material: 6082-T6
4. Main tube: diameter 50*3mm
5. Braces: diameter 20*2mm
6. Length: 500mm - 4000mm
Allowable Loading
| SQS 287 Allowable Loading |
| 6082-T6 50*3mm tube as main tube 20*2mm as brace tube |
| Span | LOAD ALL | Unitformly distributed load(UDL) | Centre point load(CPL) | DEFLECTION |
| m | ( ft ) | kg | kg/m | kg | (mm) |
| 4 | 13.1 | 809.6 | 202.4 | 404.3 | 8 |
| 5 | 16.4 | 808.5 | 161.7 | 404.3 | 16 |
| 6 | 19.7 | 808.5 | 134.8 | 404.3 | 27 |
| 7 | 23 | 808.5 | 115.5 | 404.3 | 43 |
| 8 | 26.2 | 788.5 | 98.6 | 394.2 | 63 |
| 9 | 29.5 | 699.9 | 77.8 | 350.4 | 80 |
| 10 | 32.8 | 631.4 | 63.1 | 315.7 | 99 |
| 11 | 36 | 576.0 | 52.4 | 288.0 | 120 |
| 12 | 39.3 | 526.7 | 43.9 | 263.3 | 142 |
Product Advantages
1. 16 years perfessional stage truss big events experience since 2001.
2. Project cases are cover to all over the world.
3. LEDIKA is government tender brand and famous in many countries.
4. OEM and R&D are supported.
5. We attend to the prolight show every year.
6. With material 6082 T6 guarantee certification.
7. Have TUV and ISO certification.
8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games,
Shanghai Expo and World Youth Skiing Championships etc.
9. Best quality aluminium truss and stage, strict working production process.
10. Life-time after sales service.
Applications:
1.Celebration services
Opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting,
the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony,
capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,,
public relations etiquette; promotion of new products, awards ceremony;
2.Business services
Press conferences, new product launches, the various types conferences such as for investment,order,
awards, the annual meeting, customer appreciation, sightseeing exchanges
3.Performances service
Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic
features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse
for performing arts, performances facility ,stage lighting truss.

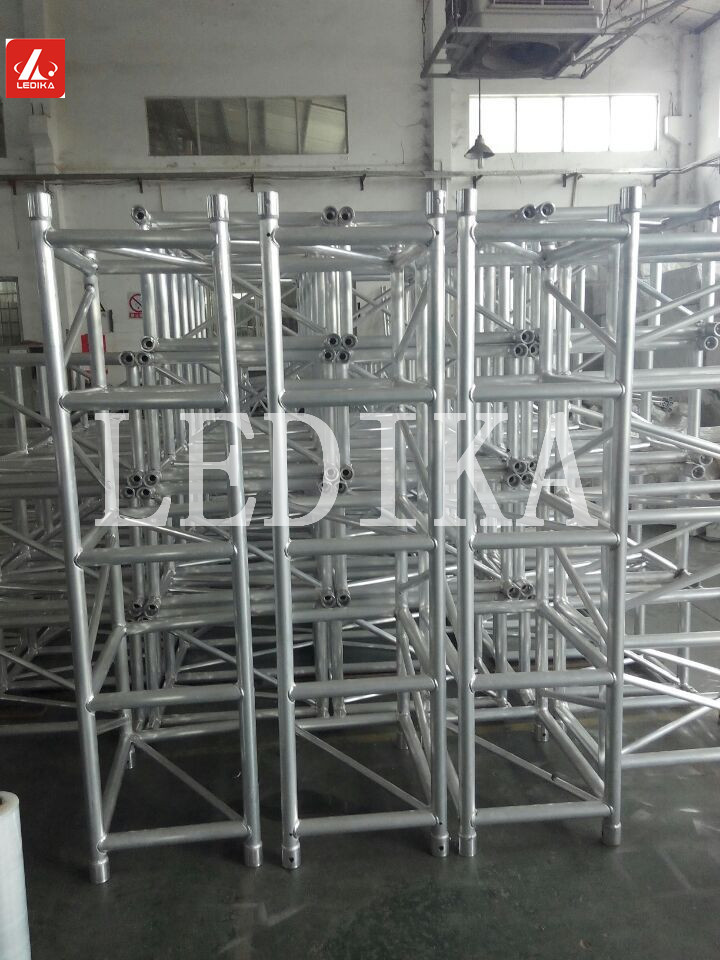

Photos:
Welcome to contact us for a long term cooperation!
