Durable Triangular Aluminum Spigot Truss Lighting Trusses Customized Shape
Product Description
Aluminum Triangular Spigot Truss is made of international standard aluminum 6082 , with the advantages of beautiful appearance,small volume, easy to set up and transport, it also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to your requirements.
Material
- Material : 6082 Aluminum
- Color : Silver, Black, Red, Green or Customized
- Standard: TUV ,SGS, ISO9001
- Truss Shape: Triangular
Truss section specification(L*W): mm= millimeter
Light Series
| Size of Truss | 287x287mm | 290x290mm | 300x300mm | 305x305mm |
| Connection | Spigot | Bolt/Spigot | Bolt | Bolt |
| Truss main tube | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm |
| Truss sub-tube | / | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm |
| Truss brace tube | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm |
| Truss Joint | Diameter Ø 50mm | Mould die | 50x25mm | 100x10mm |
| Max Loading | 520-800kg | 720-1200kg | 600-1100kg | 640-920kg |
| Max Span | 12m | 12m | 12m | 12.2m |
Applications:
1.Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon-cutting, the launching ceremony, the unveiling ceremony,
the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2.Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign
star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.

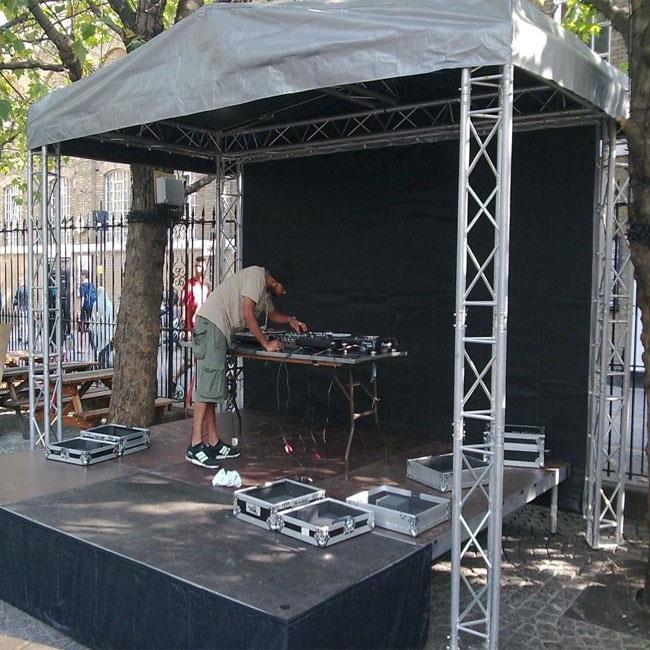

Pictures
