390 x 390 Customized Length Aluminum Spigot Truss Shiny Silver Truss System
Descriptions:
Aluminum Spigot Truss is made of the material of international standard 6082, with the advantages of beautiful appearance,small volume, easy to set up and transport
It also has the advantages of excellent compressive and anticorrosive performance;
The truss average loading can meet many kinds of performances, business conferences audio equipment requirements.
Other irregular shapes can be customized according to your requirements.
Specificaton:
Size of Truss:390*390mm
Connection: Spigot
Truss main tube: Diameter Ø 50mm , Thickness 3mm
Truss sub-tube: Diameter Ø 50mm , Thickness 2mm
Truss brace tube: Diameter Ø 30mm , Thickness 2mm
| SQS390 Allowable Loading |
| 6082-T6 50*3mm tube as main tube 30*2mm as brace tube |
| Span | LOAD | Uniformly distributed load(UDL) | Centre
point load(CPL) | 2 points | 3 points | 4 points | DEFLECTION |
| m | ( ft ) | kg | kg/m | kg | kg | kg | kg | (mm) |
| 4 | 13.1 | 897.2 | 224.3 | 406.6 | 336.1 | 224.1 | 186.3 | 2 |
| 5 | 16.4 | 897.1 | 179.4 | 406.6 | 336.1 | 224.1 | 186.3 | 4 |
| 6 | 19.7 | 896.3 | 149.4 | 406.6 | 336.1 | 224.1 | 186.3 | 9 |
| 7 | 23 | 894.7 | 127.8 | 405.1 | 335.5 | 223.6 | 186 | 16 |
| 8 | 26.2 | 894.2 | 111.7 | 405.1 | 335 | 223.3 | 185.8 | 24 |
| 9 | 29.5 | 894 | 99.3 | 405.1 | 335 | 223.3 | 185.8 | 35 |
| 10 | 32.8 | 893.2 | 89.3 | 405.1 | 335 | 223.3 | 185.8 | 49 |
| 11 | 36 | 887.8 | 81.6 | 405.1 | 335 | 223.3 | 185.5 | 66 |
| 12 | 39.3 | 887 | 73.9 | 405.1 | 332.6 | 221.8 | 184.5 | 85 |
| 13 | 42.6 | 820.8 | 63.1 | 385.4 | 307.2 | 205.2 | 171.3 | 101 |
| 14 | 46 | 765.4 | 54.7 | 371.7 | 286.4 | 191.3 | 159.2 | 117 |
| 15 | 49.2 | 716.1 | 47.7 | 358.1 | 268.5 | 179 | 148.8 | 135 |
| 16 | 52.5 | 665.3 | 41.6 | 332.6 | 249.5 | 166.3 | 138.3 | 153 |
Applications:
1. Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon-cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2. Business services: press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges
3. Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
Product Advantages
1. Aluminium material-durable and absolutely environmental friendly.
2. Light weight-easy to carry around, store and transport.
3. High quality-strong loading capability.
4. Unique design-with perfect craftsmanship,owns technicians design for your special request.
5. Favorable price-with competitive price under the assurance of quality.

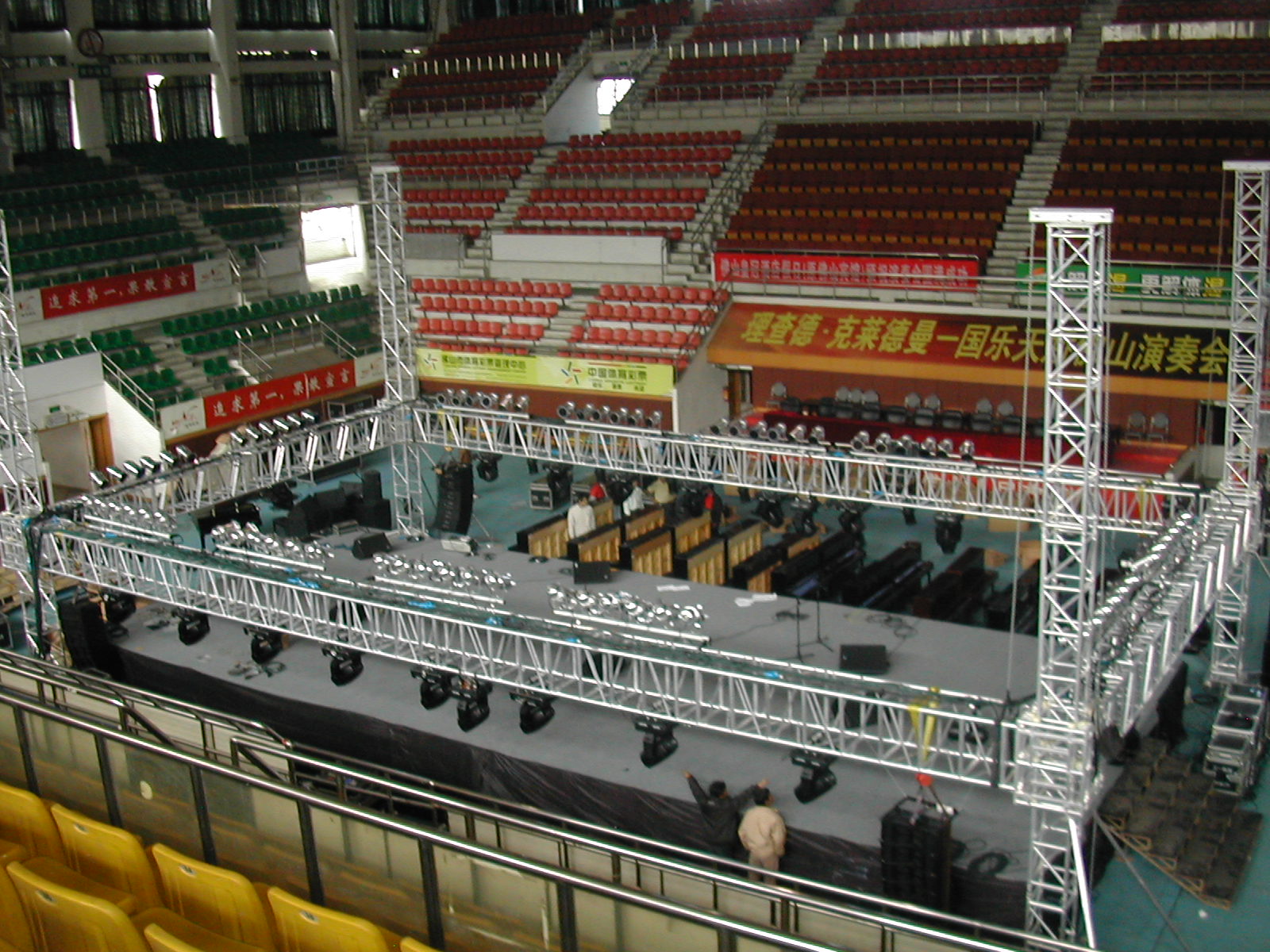

Project Views:
Welcome to contact us for long term cooperation!
